Industrial

TerraGuide

Extra Form

Area	China
Year	2025
Award	WINNER
Affiliation	Hubei University of Technology
Designer	Yuzhen Dong, Yuxuan Mao, Yuchen Zhou, Yifan Pang

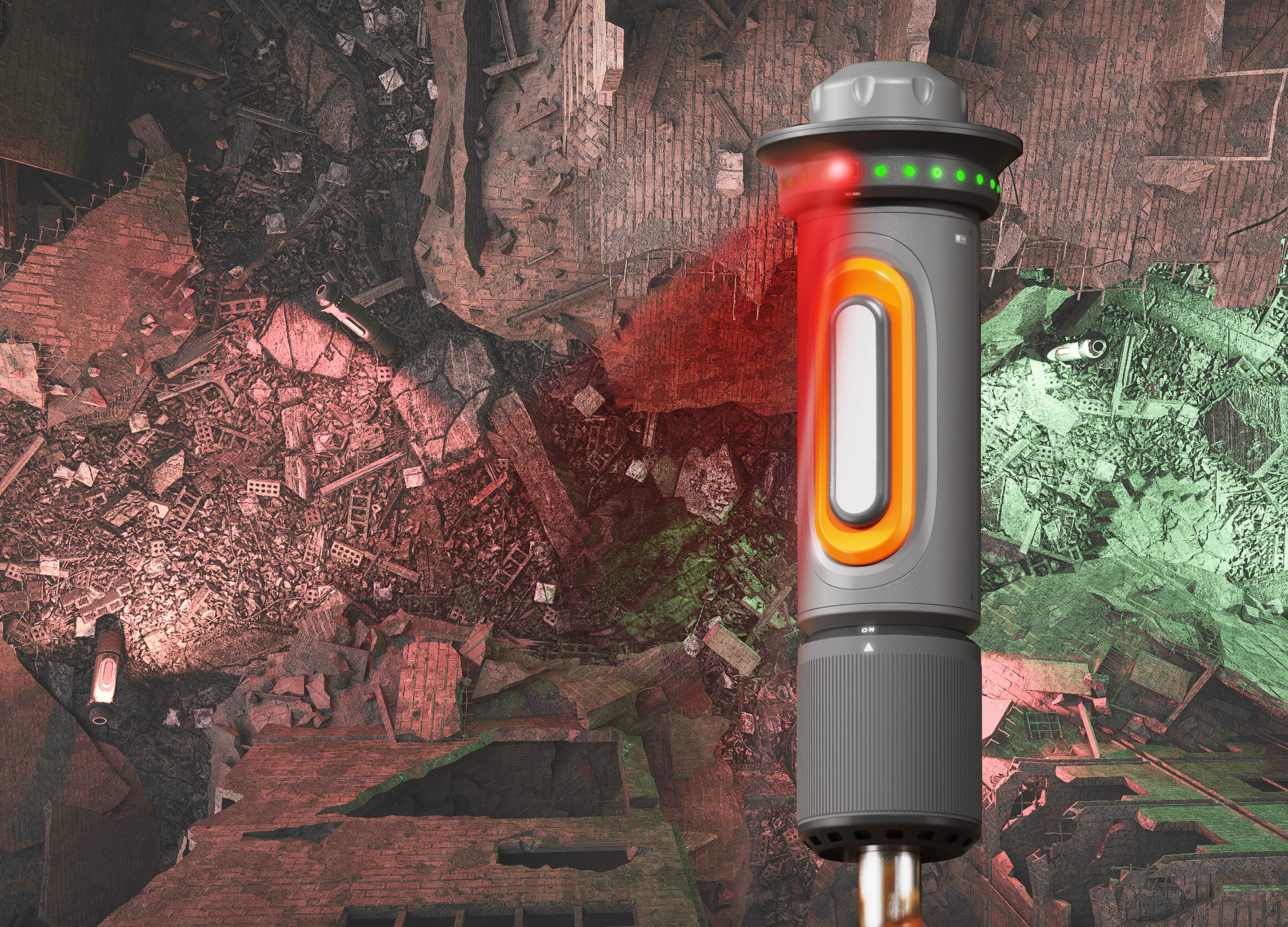

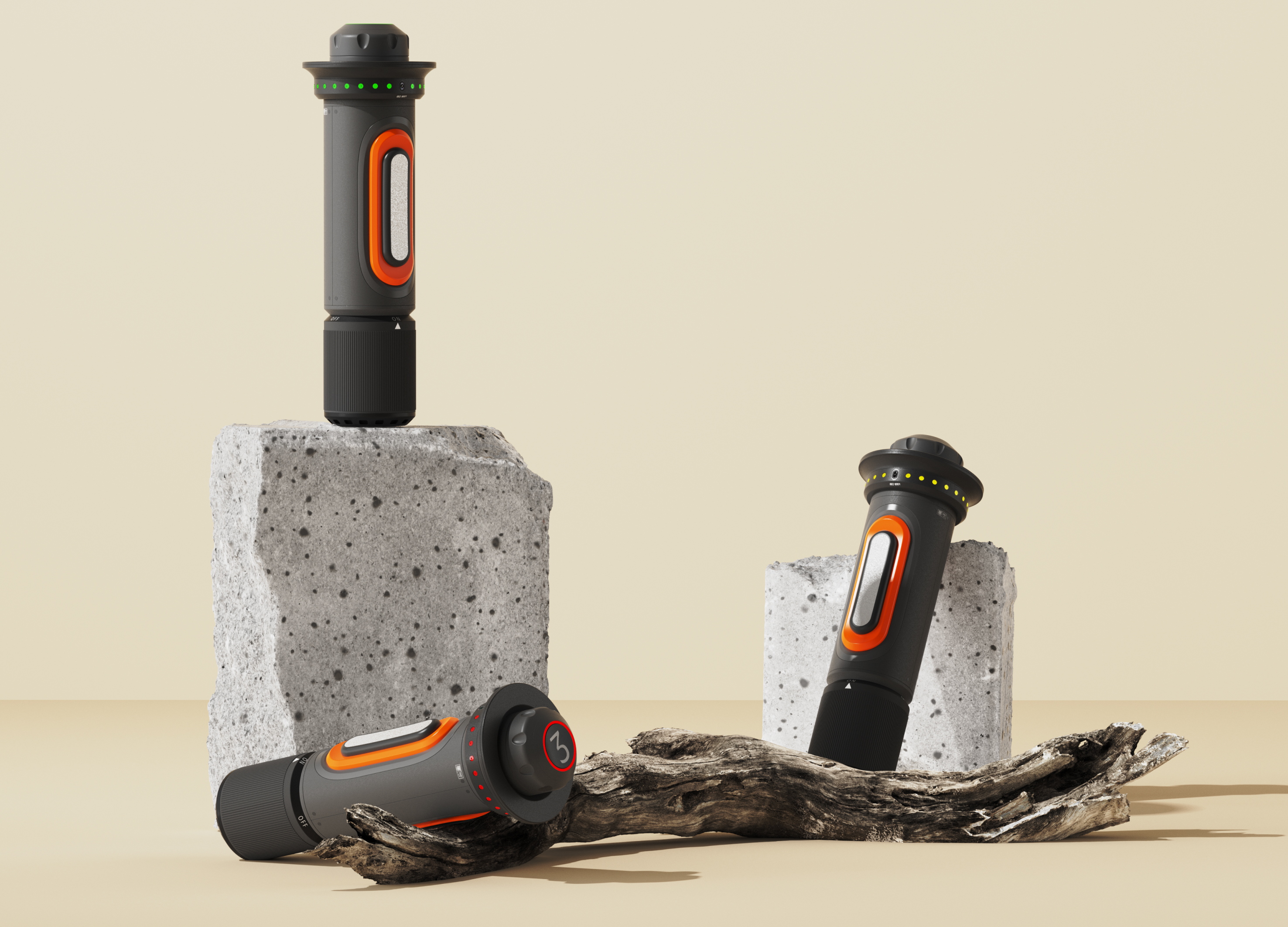

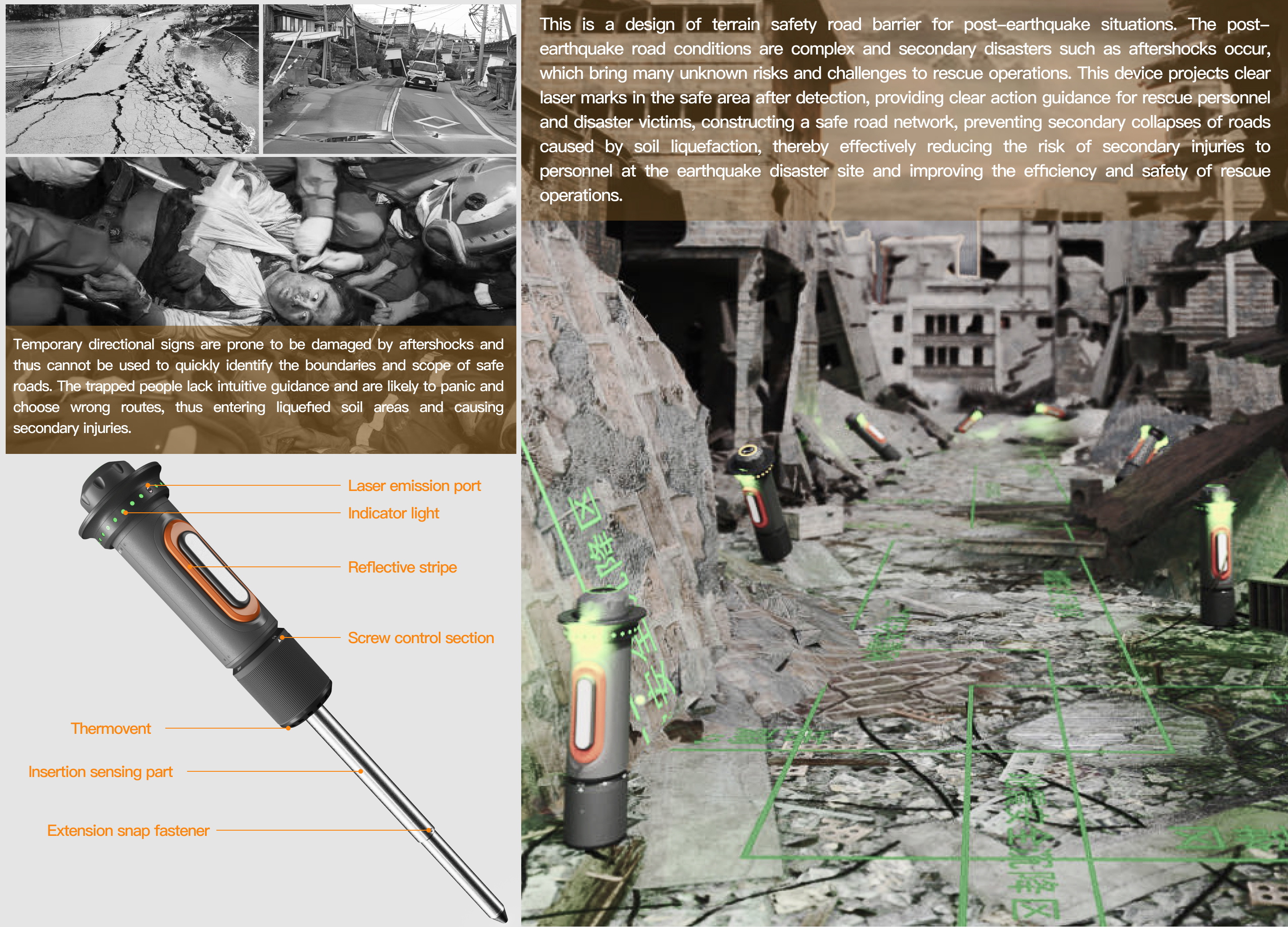

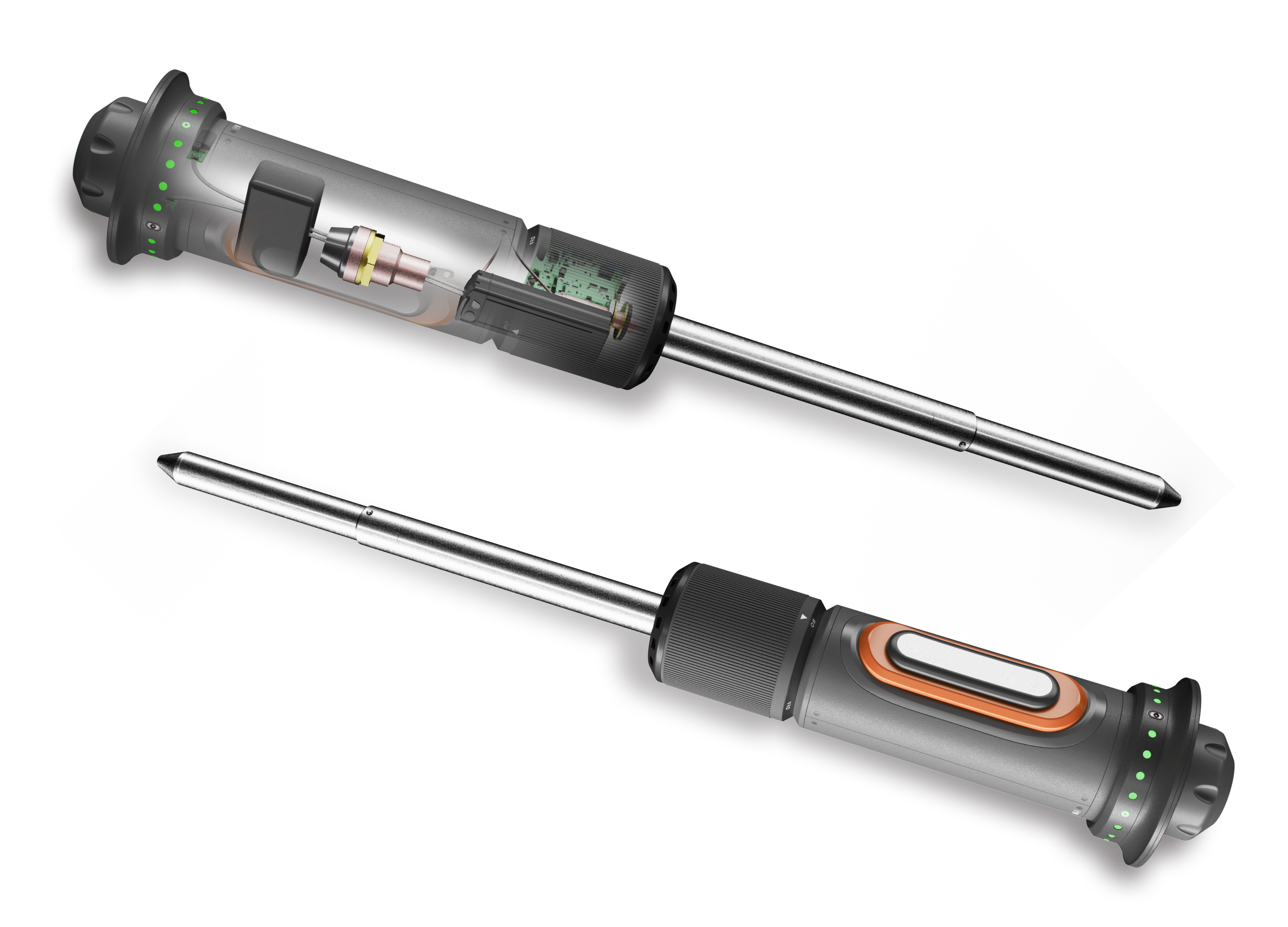

Description(English)	After an earthquake, unstable terrain and soil liquefaction pose serious rescue risks. This device uses a fuse-trigger system, activated when a displacement sensor detects just 1.5mm of ground shift. It sends a signal to change the laser color, marking danger zones in real time. Made of lightweight aluminum-magnesium alloy with a Viton-coated surface, it resists corrosion and improves stability. The sensor's rubber-tipped aluminum casing adapts to subtle shifts. By visually indicating safe and hazardous areas, the system helps form clear evacuation routes, reducing injury risks and boosting rescue efficiency.
Description(Native)	在地震灾后，道路情况往往极为复杂，伴随着余震及土壤液化等次生灾害的发生，给救援工作带来了诸多未知的风险与挑战。为了提升设备检测的严谨性与可靠性，本产品内部集成了“保险丝触断系统”，其结构类似于电闸，通过物理断接来实现信号控制。核心触发机制依赖于头部配置的高灵敏位移传感器。该传感器可精准捕捉地表与土质的微小位移，仅1.5mm的土壤偏移便足以触发保险丝接触断开。触断后，系统中的信号转换模块将立即向激光发射器传输指令，改变激光颜色，从而实时标示出该区域可能发生土壤液化或坍塌的风险。这一结构设计使潜在的地质风险得以可视化表达，为逃难群众和救援人员提供更为直观、安全的路线指引。在灾难环境中，尤其是在群众情绪恐慌、判断力受限的情况下，该系统能显著提升逃生决策的效率和准确性。产品本体采用铝镁合金材质打造，确保结构轻盈而坚固，便于快速部署与携带。表面覆盖氟龙涂层，在增强抗腐蚀能力的同时提升材质粗糙度，从而有效增加与地面的摩擦力，提升稳定性。传感器部分则采用铝制包裹结构，内部伸出部分嵌入橡胶类弹性体，使其在面对地面细微位移与土壤液化现象时，具备更高的响应精度与物理适应性。通过激光发射状态的变化，救援人员可迅速识别安全通行区域与高风险地段，避免误入潜在液化区造成的二次伤害，从而在震后环境中建立一条更为高效与可视的“灾后安全通道”。
Positive Comments
Judging Comments	This snow removal tool set integrates spraying, ice-breaking, shoveling, and transport functions. Its foldable and rail-adapted designs improve portability and efficiency, while sharp, durable components handle thick ice and compacted snow with ease. By enabling quick, versatile responses to diverse winter conditions, it enhances both safety and speed in railway maintenance, earning high praise for its practical and comprehensive design.
